Auger Size: 24" x 42"

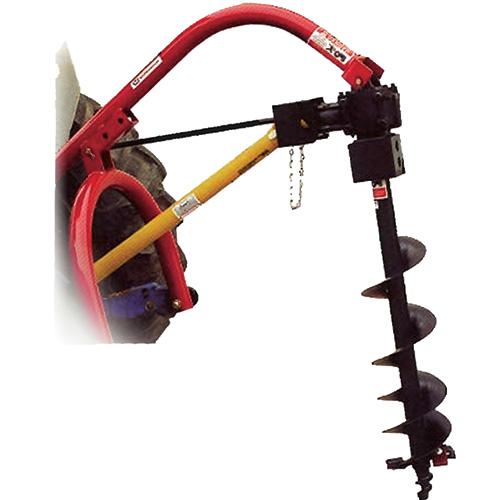

Ideal for small acreage owners, Worksaver's Model 300 post hole digger is engineered to work with sub-compact tractors.

FEATURES
... Read more

Ideal for small acreage owners, Worksaver's Model 300 post hole digger is engineered to work with sub-compact tractors.

FEATURES

• Compatible with most tractors that are up to 25 horsepower (with Cat. 0 or limited Cat. 1 mounting)
• Three position 2.875" diameter boom fits a variety of tractor models
• Handles 6", 9", and 12" diameter standard duty 30" length augers
• Has a lever to adjust auger starting angle
• Large 2" output shaft with two-bolt auger connection for reliable power transfer
• Job matched augers have fishtail centre points with double flighting for quick, positive digging
• Shear-bolt protected PTO drive
• Gearbox features a 3:1 gear ratio, tapered roller bearings, spring loaded seals, and a 5-year limited warranty
• Optional parking stand kit available (GMR102160)

Optional PARKING STAND KIT - #GMR102160

This optional addition makes connecting or removing the digger a one-person job. This kit allows for easy connection of two removable legs that support the auger when in a vertical position.

ADDITIONAL NOTES

The GMR 300 is designed to fit most tractors equipped with a Category 0 or limited Category 1 three point hitch with 7/8" pins.

Most tractors of this size have lift arms with a 7/8" diameter and Category 1 pins, but with the 20" Category 0 spacing, tractors with very short lift arms made for 5/8" diameter pins may not be suitable for digging post holes. (Special 5/8-inch diameter pins are available for those tractors that can handle the post hole digger).

Delivering maximum performance and durability, Worksaver's Model 720 post hole digger is perfect for heavy duty applications.

FEATURES ... Read more

Delivering maximum performance and durability, Worksaver's Model 720 post hole digger is perfect for heavy duty applications.

FEATURES

• Compatible with most tractors that are between 25 and 65 horsepower (with Cat. 1 or Cat. 2 mounting)
• Three position 3.5" diameter boom fits a variety of tractor models
• Handles 6", 9", 12", 14", 18", and 24" diameter standard and heavy duty 42" length augers
• Comes standard with a horseshoe yoke
• Has a lever to adjust auger starting angle
• Large 2" output shaft with two-bolt auger connection for reliable power transfer
• Job matched augers have fishtail centre points with double flighting for quick, positive digging
• Shear-bolt protected PTO drive
• Gearbox features a 3.18:1 gear ratio, tapered roller bearings, spring loaded seals, and a 5-year limited warranty
• Optional parking stand kit available (GMR102160)

Optional PARKING STAND KIT - #GMR102160

This optional addition makes connecting or removing the digger a one-person job. This kit allows for easy connection of two removable legs that support the auger when in a vertical position.

Auger Size: 12" x 42"

GMR is designed to fit most 14-24 horsepower tractors equipped with a Category 0 - 3 point hitch and a 540 rpm PTO.
It fits the 16 HP Kubota Model B7100. Capable of handling 6", 9" and 12" diameter standard duty 30" length augers, this 3 position boom allows the unit to fit a variety of tractor models.
... Read more

GMR is designed to fit most 14-24 horsepower tractors equipped with a Category 0 - 3 point hitch and a 540 rpm PTO.
It fits the 16 HP Kubota Model B7100. Capable of handling 6", 9" and 12" diameter standard duty 30" length augers, this 3 position boom allows the unit to fit a variety of tractor models.
A lever is provided for the operatorto adjust the auger starting angle
The gearbox has a 3:1 gear ratio and is protected by the shear-pin PTO drive. The gearbox features tapered roller bearings and spring loaded seals and has a 5 year limited warranty. Built for years of trouble-free work with a minimum amount of maintenance.

NOTE: Most tractors of this size have lift arms made of ? inch diameter, Category I pins, but with the 20 inch Category 0 spacing. Tractors with very short lift arms made for 5 /8 inch diameter pins may not be suitable for digging post holes. (Special ? inch diameter pins are available for those tractors that can handle the post hole digger).
Auger Size: 12" x 30"

12" Standard Duty Single Flight Auger with teeth. 2" ID Round with 42" useable flighting length.
Auger Size: 12" x 42"

6" Standard Duty Single Flight Auger w/teeth.
2" ID round with 42" useable flighting length.

6" Heavy Duty Single Flight Auger w/teeth.
2" ID round with 42" useable flighting length.

GMR 300is designed to fit most 14-24 horsepower tractors equipped with a Category 0 - 3 point hitch and a 540 rpm PTO.
It fits the 16 HP Kubota Model B7100. Capable of handling 6", 9" and 12" diameter standard duty 30" length augers, this 3 position boom allows the unit to fit a variety of tractor models.
... Read more

GMR 300is designed to fit most 14-24 horsepower tractors equipped with a Category 0 - 3 point hitch and a 540 rpm PTO.
It fits the 16 HP Kubota Model B7100. Capable of handling 6", 9" and 12" diameter standard duty 30" length augers, this 3 position boom allows the unit to fit a variety of tractor models.
A lever is provided for the operatorto adjust the auger starting angle
The gearbox has a 3:1 gear ratio and is protected by the shear-pin PTO drive. The gearbox features tapered roller bearings and spring loaded seals and has a 5 year limited warranty. Built for years of trouble-free work with a minimum amount of maintenance.

NOTE: Most tractors of this size have lift arms made of ? inch diameter, Category I pins, but with the 20 inch Category 0 spacing. Tractors with very short lift arms made for 5 /8 inch diameter pins may not be suitable for digging post holes. (Special ? inch diameter pins are available for those tractors that can handle the post hole digger).
Auger Size: 6" x 30"

Auger Size: 9" x 42"

Yoke Weldment (Model 925 PHD)

Number of Cylinders: 2
Size: 3” x 6”

Auger Size: 12" x 42"

Auger Size: 14" x 42"

Auger Size: 6" x 42"

GMR is designed to fit most 14-24 horsepower tractors equipped with a Category 0 - 3 point hitch and a 540 rpm PTO.
It fits the 16 HP Kubota Model B7100. Capable of handling 6", 9" and 12" diameter standard duty 30" length augers, this 3 position boom allows the unit to fit a variety of tractor models.
... Read more

GMR is designed to fit most 14-24 horsepower tractors equipped with a Category 0 - 3 point hitch and a 540 rpm PTO.
It fits the 16 HP Kubota Model B7100. Capable of handling 6", 9" and 12" diameter standard duty 30" length augers, this 3 position boom allows the unit to fit a variety of tractor models.
A lever is provided for the operatorto adjust the auger starting angle
The gearbox has a 3:1 gear ratio and is protected by the shear-pin PTO drive. The gearbox features tapered roller bearings and spring loaded seals and has a 5 year limited warranty. Built for years of trouble-free work with a minimum amount of maintenance.

NOTE: Most tractors of this size have lift arms made of ? inch diameter, Category I pins, but with the 20 inch Category 0 spacing. Tractors with very short lift arms made for 5 /8 inch diameter pins may not be suitable for digging post holes. (Special ? inch diameter pins are available for those tractors that can handle the post hole digger).
Auger Size: 9" x 30"

Auger Size: 9" x 42"

Bolt in Fish Tail Centre Point

Thread In Fish Tail Centre Point

Designed to work reliably with compact tractors, Worksaver's Model 500 post hole digger is the most popular in the Worksaver post hole digger line.
... Read more

Designed to work reliably with compact tractors, Worksaver's Model 500 post hole digger is the most popular in the Worksaver post hole digger line.

FEATURES

• Compatible with most tractors that are between 20 and 35 horsepower (with Cat. 1 or Cat. 2 mounting)
• Three position 2.875" diameter boom fits a variety of tractor models
• Handles 6", 9", and 12" diameter standard and heavy duty 42" length augers
• Comes standard with a horseshoe yoke
• Has a lever to adjust auger starting angle
• Large 2" output shaft with two-bolt auger connection for reliable power transfer
• Job matched augers have fishtail centre points with double flighting for quick, positive digging
• Shear-bolt protected PTO drive
• Gearbox features a 3:01 gear ratio, tapered roller bearings, spring loaded seals, and a 5-year limited warranty
• Optional parking stand kit available (GMR102160)

Optional PARKING STAND KIT - #GMR102160

This optional addition makes connecting or removing the digger a one-person job. This kit allows for easy connection of two removable legs that support the auger when in a vertical position.
